Retrofitting a Threaded Bottom Bracket in a BB30 Shell, and Bonus Hub Failure Pictures



ReadyToPress

I get requests like this from time to time: “Can you take all the components off of my old frame and put them on my new frame, and put all the components from my new frame on my old frame?”

My answer usually goes something like “Yes, but you might need a new front derailleur and the crankset might need some kind of adapter.”

The front derailleur fit question is just whether the derailleur is braze-on or clamp-on, and if clamp-on, the diameter of the seatpost. Pretty straightforward, not very esoteric. That’s all I’ll say about that.

The crank/bottom bracket interface is much more… interesting.

For some fun reading Google “Bottom Bracket Standards Frustration”.

I recently got a request from my friend Chris to swap all the components, including the cranksets, between two bikes. One was an older Trek Postal he had just purchased, and the other was a newer Kestral.

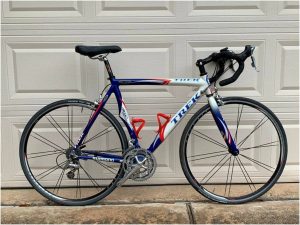

TrekPostal

Here are the crank specs for both:

Bike One: Trek Postal Bike Two: Kestral
Bottom bracket shell:

BSA English threaded

Bottom bracket shell:

BB30

Bottom bracket bearing set:

Octalink cartridge bottom bracket (The bearings were still good. Those Shimano cartridge bearing units used to last forever, so I was swapping it with the crank.)

Bottom bracket bearing set:

BB30 press-in bearings, worn out

Adapter: None Adapter:

Wheels Manufacturing BB30 to 24mm bushings

Crankset:

Shimano Octalink Ultegra triple

Crankset:

Shimano Ultegra Hollowtech, which I’m sure you know has a 24mm spindle.



Installing the crankset from Bike Two onto Bike One was no problem. I screwed in a Shimano external bearing bottom bracket. The 24mm Hollowtech crankset was then a direct fit.

Installing the crankset from Bike One onto Bike Two is where it got interesting.

If it had been a Hollowtech (24mm) spindle, I could have used the Wheels Manufacturing bushings. But no, it was Octa-link. And the Octa-Link spindle is integrated with the cartridge bearing bottom bracket. That whole cartridge assembly requires a BSA threaded interface.

As an aside, there are two Octa-Link standards, V-1 and V-2, and they are not interchangeable. You can ruin your crank if you get this wrong.

As another aside, here’s an idea for an aftermarket product – a 24mm OD spindle with Octa-Link spline interfaces at each end. Are any of you aware of such a product?

Back on topic, it turns out what I needed is an available commercial product, a sleeve that press-fits into the bore of a BB30 shell and presents a BSA threaded interface! I had seen these press-fit threaded inserts but I had never given them much thought until this job. They come in two types, plastic and aluminum. I opted for aluminum because, plastic?

SleeveBB30

I started by extracting the BB30 bearings, removing the C-rings from the BB-30 shell, and cleaning everything up. I measured the honed ID of the shell to be 41.98mm.

CleanBB30Trust me, it’s 41.98 mm

I measured the OD of my insert to be 42.00mm..

42mmsleeve

So I thought, I can press this sleeve into place with 0.02mm of interference, but I wonder if I could do something more interesting.

I did a little math/science and determined that if I reduced the sleeve temperature from 80F to zero the OD would shrink to ~41.96mm. Then I could just slide the sleeve in by hand. I tossed the sleeve in the deep freeze for a few hours and sure enough, the OD was 41.96!

FrozenSleeve

Great, but not practical without a dry room to prevent the sleeve from sweating, and moisture would prevent good bonding of the requisite Green Loctite. Oh, did I mention that assembly instructions call for application of Green Loctite prior to fitting?

So I decided to do a regular room temperature interference press-fit. I was scared to death I would put it in backwards so I marked the right side.

RightSideMarkedSelecting appropriate bushings, sleeves, and spacers for pressing

ReadyToPressReady to apply Green Loctite

There was, as expected, resistance while the left end of the sleeve passed through the right side of the BB30 shell, then free movement until both left and right ends of the sleeve engaged the BB30 shell, then resistance until final position was reached.

HalfwayThereAt this point the left OD of the sleeve has passed through the right bore of the BB30 shell, and both ODs are about to engage their respective bores.

SleeveInPlace1Final placement

After letting the Loctite cure overnight, the final test of the interference fit was torquing the left and right Octa-link endcaps into place. I applied 40 ftlbs to each with no movement of the sleeve relative to the shell. Yay!

InsertOctaLinkOcta-Link bottom bracket ready for insertion. It’s old and ugly, but it still spins like butter.

I was pretty proud of myself, and I was describing this operation to my good friend Pierre, who made two astute observations:

  1. “Did pressing the sleeve into place wipe all the Loctite off?” (Answer: I don’t know. I like to think that on the molecular level there is a really well-cured film of Loctite.)
  2. “You know, Mark, the middle of the sleeve is in axial compression.” Now that’s esoteric!

One more comment: Can this sleeve be removed? Good question. I see a lot of internet forum discussion on this topic. Removal seems to be possible with a bearing press and a short tube slightly over 42mm ID.

“I removed the sleeve from my Orbea Orca so that I could run BB30 and Wheels manufacturing adapters instead. To remove it we used a headset press (posh park one) and a round halfords chrome exhaust extension.”

“Having seen one removed at a shop with the proper tools, I was able to remove an E13 variant from a mountain bike frame a couple years ago using a Park Tool headset press and two short sections of pvc pipe of different diameters – one as a drift and the other as a sleeve. The insert came out with no issues, but it did not have any retaining fluid (gap filler) as a bonding agent.”

Or with an old cartridge bottom bracket and a hammer.

Bonus Failure Pictures:

Here’s a Campy front hub that (after many years of service) failed. The failure on one side is obvious. Closer inspection of the other side reveals a crack just beginning to propagate. Interestingly this crack is in a symmetric orientation with the larger failure.

CrackedHub

CrackingHub

























8 thoughts on “Retrofitting a Threaded Bottom Bracket in a BB30 Shell, and Bonus Hub Failure Pictures”

  1. Killa,
    the cracked front hub pictures are a strong reminder that one should inspect all bike components for cracks on a regular basis. That front wheel could have failed earlier and resulted in a cracked helmet or something worse.
    Pierre qui roule

  2. What does axial compression of the sleeve mean? Do you know more about the hub damage cause? Do you think the symmetrical hub flange damage is indicative of one big hit to the wheel? Can it be a coincidence that both flanges fail in the same location?

    1. Hi Ray, thanks for commenting. On the axial compression issue, it’s surely a non-issue, but Pierre is technically correct. The left end of the adapter sleeve was pushed into place by a compressive force transmitted thru the middle of the sleeve. Once in place, friction prevents release of the axial compression. If I had pulled the sleeve into place somehow, the middle of the adapter would be in axial tension. I’ll see if I can calculate a realistic value for the residual compression.
      Re the hub failure, I took a good look with a “honey I shrunk the kids” magnifier hood and found more incipient cracks at about 120 degrees form the major failure. Everything looks like brittle failure. I don’t know the whole history of this hub, and I’m not an expert but I’m going with fatigue failure, after a long and happy service life.
